Mira Excel EV

The UK's best selling thermostatic mixer. Unbeatable at all pressures, Excel is our best performing mixer. With additional easy install features, saving time and installation costs.

  • Thermostatic temperature stability keeps showering safe for all the family
  • Separate flow and temperature controls
  • Maximum temperature stop for added safety, with manual over-ride button
  • Four spray showerhead with rub clean rubber nozzles for easy cleaning
  • Ease of Installation making this the installers number 1 choice
  • Easy installation features save time and installation costs
  • Use of ceramic flow control which is especially resilient to limescale build up in hard water areas
Available in:
Chrome
RRP £533.45 (1.1518.300)
WRAS Approved Product
Print this pageemail this page


  • Click on image to enlarge

All prices are Manufacturer's Recommended Retail Prices in pounds sterling. The price you pay at your local stockist may be different than the Manufacturer's Recommended Retail Price. These prices supersede previous prices and are subject to change without notice. Prices include VAT at 17.5%. These prices do not include shipping.

Close LightboxClose
Close LightboxClose

Email a Friend

Thank you for completing the Mira Showers email a friend form.

Your request has been successfully submitted and information you selected will be emailed to the supplied address(s).

* indicates required field

Please enter information in all required fields.

To send to multiple addresses, separate addresses with a comma.

Send
Error sending message. Please try again later.
Your message has been sent!
Close LightboxClose

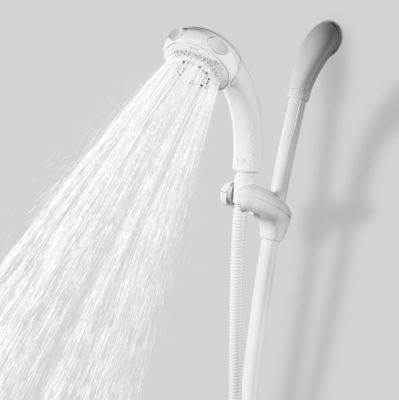

Spray Patterns

Multi Spray Pattern
Compatible with most mixer and electric showers, these showerheads are adjustable allowing you to choose from a range of different spray patterns.

Single Spray Pattern
Ideal if you have an electric or low pressure gravity-fed mixer shower, these showerheads have a single refreshing spray pattern.
Fixed - Multi Spray Pattern
Suitable for all built-in mixer showers, these showerheads are adjustable allowing you to choose from a range of different spray patterns.
Fixed - Single Spray Pattern
Suitable for all built-in mixer showers, these showerheads have a single refreshing spray pattern.
Power - Multi Spray Pattern
For power showers and high pressure systems, power showerheads are adjustable allowing you to choose from a range of different spray patterns.



Close LightboxClose

Product Approvals

Water Regulations Advisory Scheme

WRAS
The Water Regulations Advisory Scheme (WRAS) assesses water fittings products to ensure that they do not waste, misuse, unduly consume or contaminate the water supply, in order to show compliance with Regulation 4 of the requirements of the Water Supply (Water Fittings) Regulations 1999.

Close LightboxClose
Close LightboxClose

Guarantee of Quality

Mira Showers guarantee products against defects in materials or workmanship from the date of purchase.

Within the guarantee period we will resolve defects, free of charge, by repairing or replacing parts or modules. To be free of charge, service work must only be undertaken by Mira Showers or our approved agents in Northern Ireland and Republic of Ireland.

Service under this guarantee does not affect the expiry date of the guarantee. The guarantee on any exchanged parts or product ends when the normal product guarantee period expires.

Not covered by this guarantee:

Damage or defects arising from incorrect installation, improper use, lack of maintenance or system debris, including build-up of limescale.

Damage or defects if the product is taken apart, repaired or modified by any person not authorised by Mira Showers or our approved agents.

Mira Showers will not accept any liability for loss of use of the product or any losses that are indirectly associated with the incident that caused you to claim, unless caused by our negligence or that of our agents. For example, loss of earnings due to time taken off work to deal with the incident will not be covered.

This guarantee is in addition to your statutory and other legal rights.

For full details and what to do if something goes wrong, click here.

Close LightboxClose

Water Systems

All water systems
Showers flagged with the "ALL" symbol are compatible with both mains and low pressure water systems. By fitting a Mira pump when the shower is used on a low pressure system you can significantly increase the flow rate and enjoy a more invigorating showering experience.

  • Click here for more information on water systems
Mains pressure water systems

Mains Pressure Combination Boiler
A combination boiler heats cold water direct from the cold mains supply as soon as you turn on the shower or a hot tap in your home. The boiler is normally wall mounted and you won't have a cold water tank (cistern) in your loft or a hot water tank (cylinder) in your airing cupboard. Because the water supply to the system is mains fed this produces a forceful showering experience.

For a powerful showering experience we would recommend fitting a digital or mixer shower to this type of system. Alternatively, for a more gentle flow rate you could use one of Mira's electric shower fitted to the cold mains, this is also an ideal low cost option for a second or en-suite shower room.

Or

Mains Pressure Unvented
An unvented mains pressure system stores mains pressure water in a large strengthened hot water tank (cylinder), usually found in the airing cupboard. The hot water will be heated either by immersion heaters fitted in the side of the cylinder or by a central heating boiler. This type of system doesn't require a cold water tank (cistern) in your loft and provides a high water flow rate & pressure. Other systems also producing hot water at mains pressure are available these are generally known as thermal store systems.

To make the best use of the flow & pressure of these systems we would recommend a digital or mixer shower. Alternatively, for a more gentle flow rate you could use one of Mira's eco mixer showers or fit an electric shower to the cold mains, this is an ideal low cost option for a second or en-suite shower room.

  • Click here for more information on water systems
Low pressure gravity systems

Low pressure gravity system
This is the most common of all domestic water systems. The system consists of a cold water tank (or cistern) normally in your loft & a hot water tank (or cylinder) normally in your airing cupboard. It's called a low pressure gravity system because the water is kept under pressure via the gravity-fed water delivered from the cistern. How much pressure is produced is determined by the height at which the base of the cold water cistern is situated above the outlet. This is typically a minimum height of 1metre for showers. The greater the height of the cistern above the showerhead the more pressure is created.

If you have this system you can install a mixer, pumped digital or all-in-one power shower and you will have get a great showering experience. If you decide on a mixer and want a more forceful shower, fitting a pump will boost the flow rate & pressure even more.

  • Click here for more information on water systems
Cold mains supply systems

Cold Mains Supply
If you do not have or want to use your stored hot water then an ideal solution is to fit an electric shower to the cold mains supply. The benefit of an electric shower is that it is always ready to use as the water is heated instantaneously within the shower. The amount of hot water flow produced by an electric shower depends on the power rating measured in kilowatts (kW). The higher the kW rating the better the flow.

Most mains water supplies will provide enough pressure to operate an electric shower. In the rare instances that it cannot then Mira has an alternative pumped electric shower. This must be fitted to a cold water tank (cistern) supply and the internal pump will then generate the pressure normally provided by the cold mains.

  • Click here for more information on water systems
