Control dials explained
Power dial:

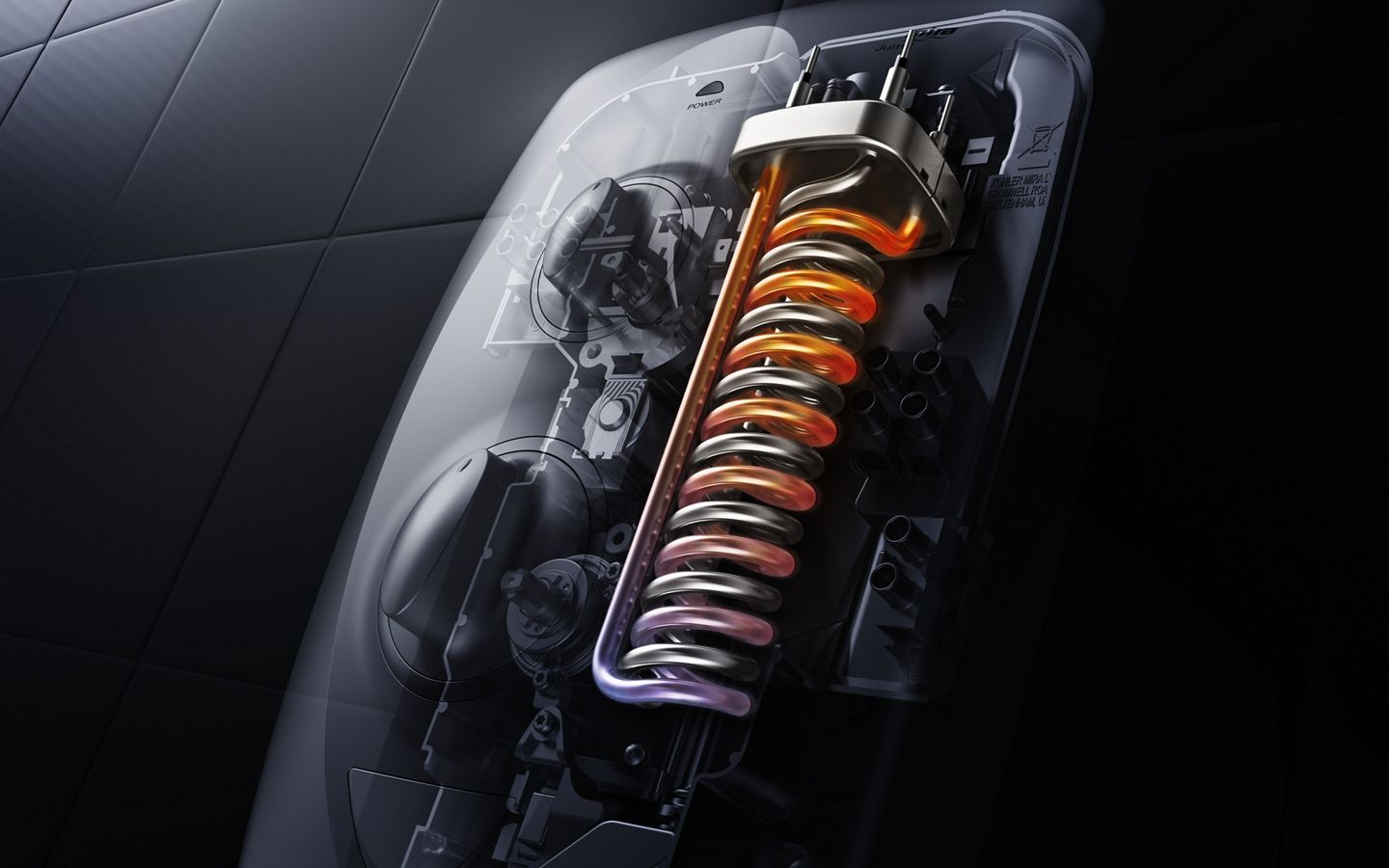

Electric showers have two heating elements through which the water passes, before being delivered. The power dial controls these.
Low - heating elements are switched off, and the water delivered is just the temperature of the water flowing through your mains water supply.
Med/ Eco - one heating element is on, providing medium heat.
High - both heating elements are on, providing maximum heat.
Temperature dial:
The temperature dial controls the speed of the flow of water running past the heating elements.
Turning this dial down (cold) speeds up the flow, and turning it up (hot) slows down the flow, allowing the water to spend more time passing over the heating elements, resulting in warmer water temperature.
